Glan-Thompson Polarizers

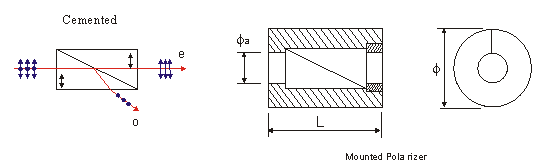

Glan Thompson polarizer consists two same calcite prisms which are cemented together. The extraordinary ray is transmitted, while ordinary ray is deflected and absorbed.
Glan Thompson Polarizers are ideal choices for applications requiring a large field of view and high extinction ratio.

General Specifications
Material
Calcite
Extinction ratio
5x105 : 1
Angle field
14-16°
Beam deviation
3 arcmin
Dimension tolerance
±0.1mm
Surface quality
20-10 S/D
Clear aperture
>90%
Coating on both sides
Single layer MgF2 coating

Item#

Material

Clear aperture
Φa (mm)

Holder
Φ(mm)
Length
(mm)
Application
Wavelength
PZ3-C06
Calcite
Φ6.0
15.0
22.0
350-2300nm
PZ3-C08
Calcite
Φ8.0
25.4
28.0
PZ3-C10
Calcite
Φ10.0
25.4
33.0
PZ3-C12
Calcite
Φ12.0
25.4
39.0



        How to order Polarizers?              Example:
Item #     PZ3-C08
Application Wavelength     350-1000nm


   Price on Request
   Custom Design
   Volume Discount
