Polarization beamsplitter cubes are constructed by cemented two right angle prisms, the hypotenuse of one prism is coated with polarization dielectric coating.
When used with normal incident, un-polarized light, the incident beam is separated into two polarized beams, p-polarized component is passed straight through, s-polarized component is reflected out at 90deg.
General Specifications
Material
N-BK7 or N-SF5
Dimensional tolerance
±0.1mm
Beam deviation
3 arc min
Surface quality
60-40 S/D
Surface flatness
λ/4@632.8nm
Clear aperture
>90%
Bevel
Protective bevel
Hypotenuse
Polarization dielectric coating
Entrance & exit faces
AR coating
Incidence of angle: 0°±2°
Laser line (Extinction Ratio 500:1)

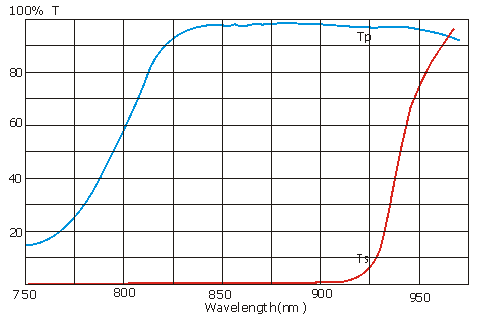

Transmittance
Tp>96% and Ts<0.2%
Reflectance
Rp<4% and Rs>99.7%
Broadband wavelength (Extinction Ratio: 200:1)
Transmittance
Tp>95% and Ts<0.5%
Reflectance
Rp<5% and Rs>99.5%
Typical Sizes
Size (mm)
Size (mm)
5.0x5.0x5.0
18.0x18.0x18.0
10.0x10.0x10.0
20.0x20.0x20.0
12.7x12.7x12.7
25.4x25.4x25.4
15.0x15.0x15.0
30.0x30.0x30.0
How to order Polarization Beasmplitter Cube? Example:
